Introduction

Hydro-Park 1127 & 1123 are the most popular parking stackers, quality proven by more than 20,000 users in past 10 years. They provide a simple and greatly cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.

- Lifting capacity 2700kg or 2300kg.

- Car heights on ground up to 2050mm.

- Platform width up to 2500mm.

- Lifting height adjustable by limit switch

- Electric auto lock release enables easier operation.

- 24v control voltage avoids electric shock

- Galvanized platform, high-heel friendly

- Bolts & nuts passing 48hrs Salt Spray Test.

- Driven by hydraulic cylinder + Korean lifting chain

- Synchronization chain keeps platform level under all conditions

- Akzo Nobel powder coating provides long lasting surfificial protection

- Proven high end quality with CE certifificate, tested by TUV.



Main Features

TUV compliant, which is the most authoritative certification in the world

Certification standard 2006/42/EC and EN14010

Low usage cost

When the platform moves down, it will be driven by gravity, so there is no electricity consumption for hydraulic power pack

All-new designed control system

Easier manipulation, safer use, failure rate reduced by 50%

Galvanized pallet

Far more beautiful and durable than observed, lifetime more than doubled

Dynamic locking device

A range of locking tabs at every 100mm on the posts to protect cars from falling

Gentle metallic touch, excellent surface finishing

After applying AkzoNobel powder, color saturation, weather resistance and its adhesion are significantly enhanced

Rich color

Great care is taken with the treatment of lacquer face, in order to improve the quality of products on surface looking to the maximum extent

Superior chains provided by Korean chain manufacturer

The life span is 20% longer than that of the domestic chains

Galvanized screw bolts based on the European standard

Longer lifetime, much higher corrosion resistance

Unique hydraulic centralized control (optional)

Perfect shared power pack unit solution

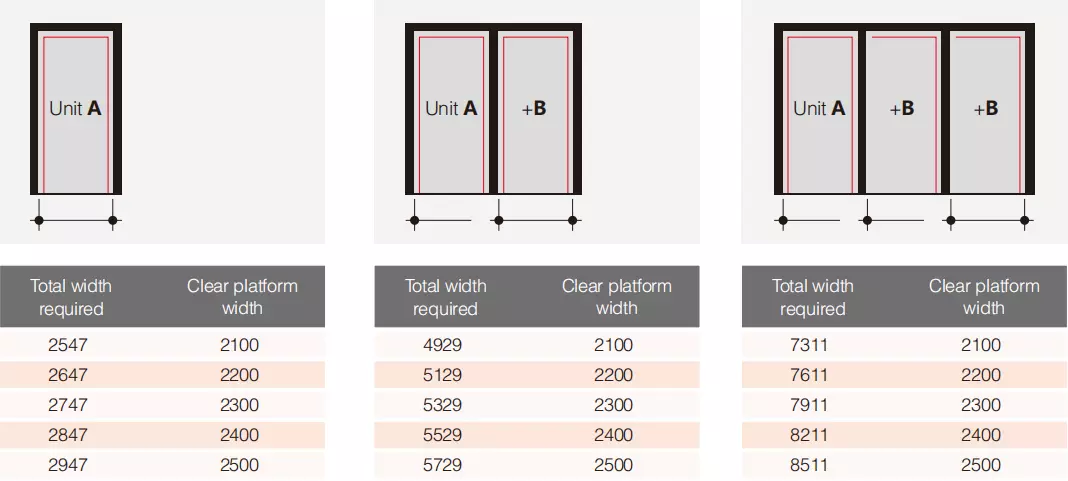

Modular connection, innovative sharing post design (optional)

The Hydro-Park two post car parking lift owns sharing post design. Combine multiple units at your will based on usage

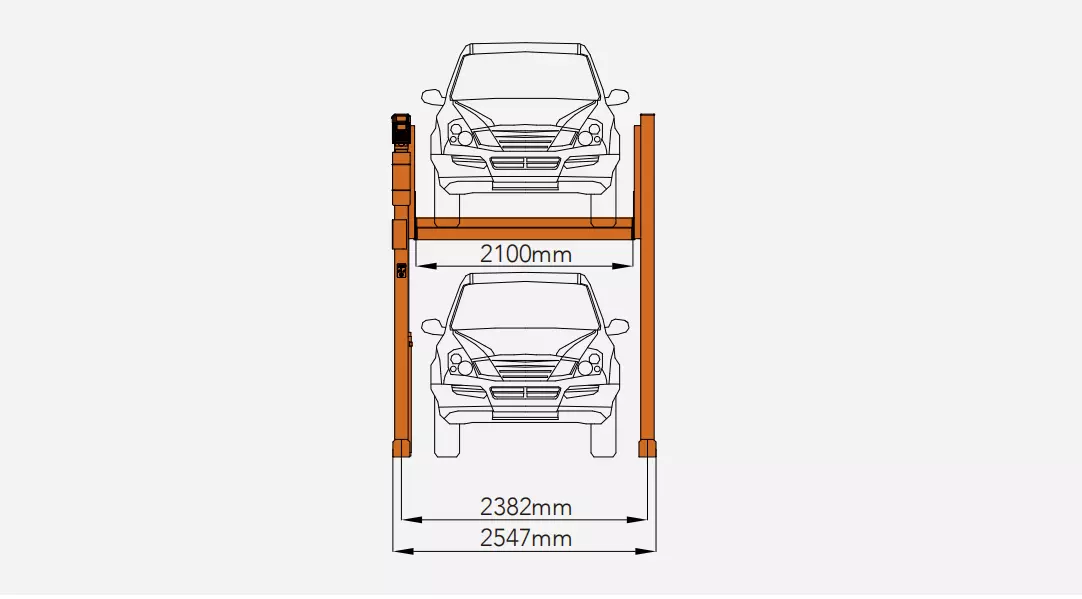

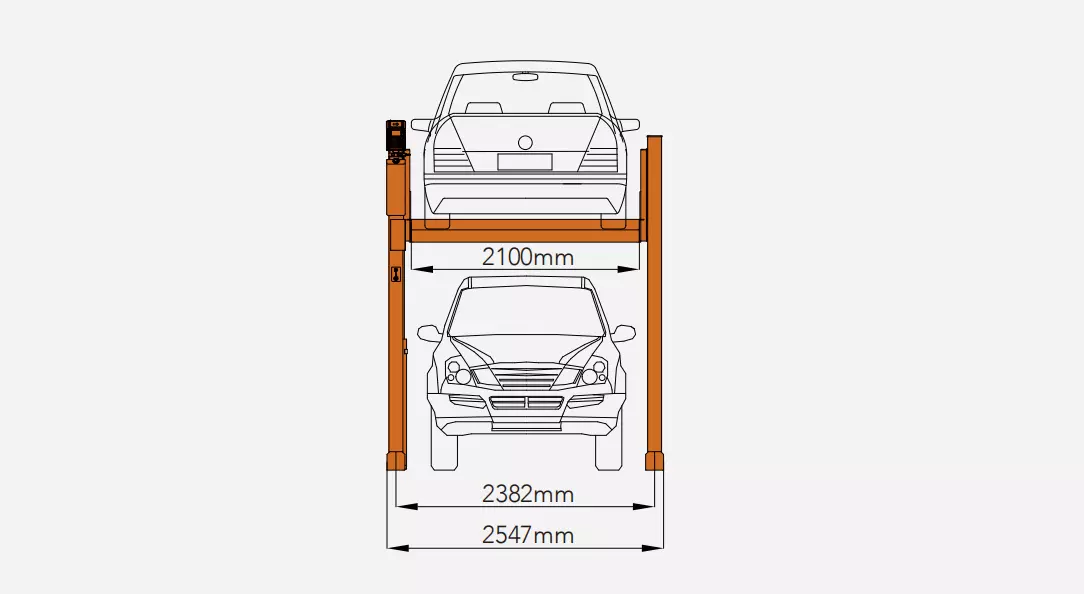

Clear platform width of 2100 mm for car widths of 1850 mm. For large touring sedans we recommend a clear platform width of at  least 2300-2500 mm. According to ISO 3864 the floor has to be marked with 100 mm wide yellow-black at a distance of 500 mm from the platform edge  by the purchaser (to be performed according to local regulations.) The lowering speed of an empty platform is considerably lower than a loaded one. It is not possible to have channels or undercuts and/or concrete haunches along the floor-to-wall joints. It the event that channels  or undercuts are necessary, the system width needs to be reduced or the installation width needs to be wider. The manufacturer reserve the right to construction or model modifications and/or alterations. Furthermore, the right to any  subsequent part modification and/or variations and amendments in procedures and standards due to technical and engineering  progresses in the art or due to environmental regulation changes, are also hereby reserved.
